Applicable materials:River pebble, calcite, quartzite, marble, pebble, bentonite, iron ore, bluestone, mountain stone, water slag, limestone, weathered sand, diabase, granite, basalt and so on
Application scope:Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.
The roller crusher (also known as double roller crusher) crushes materials via strong extrusion force after raw materials enter the crushing chamber, and the crushed finished products are discharged naturally from the bottom. When encountering excessively hard or uncrushable foreign objects, the movable roll can automatically retreat to protect the machine. It is mainly composed of roller wheels, supporting bearings, compression adjustment devices, and driving devices. Widely used in industries such as cement, chemical engineering, electric power, mining, metallurgy, building materials, refractory materials, and coal mining, it is particularly suitable for the intermediate crushing and fine-tuning of solid materials with a compressive strength of less than 250 MPa and a moisture content of less than 35%, as well as fine crushing operations where the discharge particle size can be freely adjusted between 0.5-20 mm.
River Pebbles, Cobblestones, Bluestone, Quartzite, Volcanic Rock, Iron Ore, Weathered Rock, Limestone, Granite, Sandstone, Marble, Gypsum, Etc.
Gold ore, iron ore, magnetite, copper ore, manganese ore, metallurgical silicon

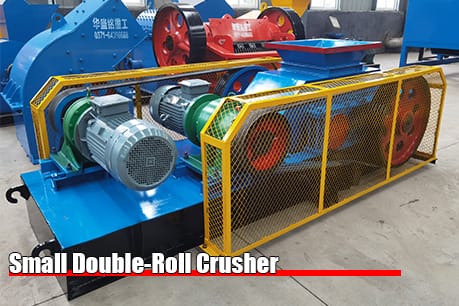

1、Small spring roller crushers, such as 2PGT400×250, 2PGT400×400, and 2PGT610×400, produce an hourly output of about 2-20 tons. These models are suitable for investment and use in small and medium-sized sand plants.
2、Medium-sized spring roller crushers, including 2PGT750×500 and 2PGT800×600, produce an hourly output of 10-50 tons.
3、Medium-sized hydraulic double roller crushers, such as 2PGY750×500, 2PGY800×600, 2PGY800×800, and 2PGY1000×800, produce an output of 20-80 tons per hour. These hydraulic models are more intelligent, offer higher output, and save costs.

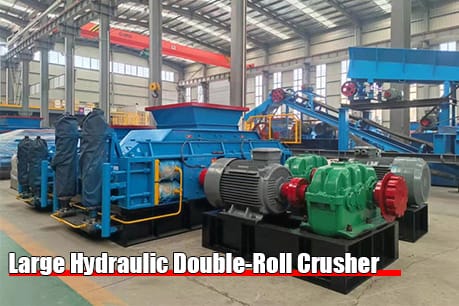

4、The large flagship series of CNC hydraulic double roller crushers, including 2PGY1000×1000, 2PGY1200×1200, 2PGY1500×1000, 2PGY1800×1000, and 2PGY2000×1000, produce an hourly output of 80-400 tons. These models are suitable for use in medium and large sand plants.
1. Superior to hammer crusher with no wearing parts, pretty sand shape, and high capacity.
2. Suitable for sand plant, metal mine crushing, waste stone crushing, etc.with excellent quality.
3. Applicable for 200 kinds of stone materials, wet and dry stuffs with one button operation.
4. National patented roller skin material with service life ≥ 2 years.
The machine’ s gap between two rollers can be adjusted freely between 1mm-20mm. After the roller’ s gap is predetermined, the crushing grain size can be controlled reliably, and all of it is discharged from the lower part of the crushing chamber with ideal grain size.
|
Specification and model
|
Roll diameter (mm) |
Feed size (mm) |
Productive capacity (t/h) |
|
2PGT400×250
|
φ400
|
≤25
|
2-10
|
|
2PGT400×400
|
φ400
|
≤25
|
5-12
|
|
2PGT610×400
|
φ610
|
≤30
|
5-20
|
|
2PGT750×500
|
φ750
|
≤30
|
10-40
|
|
2PGT800×600
|
φ800
|
≤40
|
12-50
|
|
2PGY800×800
|
φ800
|
≤40
|
40-50
|
| 2PGY800×1000 |
φ800
|
≤40
|
50-80
|
|
2PGY1000×800
|
φ1000
|
≤40
|
50-80
|
|
2PGY1000×1000
|
φ1000
|
≤40
|
80-100
|
|
2PGY1200×1000
|
φ1200
|
≤60
|
100-120
|
|
2PGY1200×1200
|
φ1200
|
≤60
|
120-150
|
|
2PGY1500×1000
|
φ1500
|
≤80
|
150-200
|
|
2PGY1500×1200
|
φ1500
|
≤80
|
200-250
|
|
2PGY1800×1000
|
φ1800
|
≤100
|
250-300
|
|
2PGY2000×1200
|
φ2000
|
≤120
|
300-400
|
