Trommel Screen Trommel Screen Machine Circular Vibrating Screen

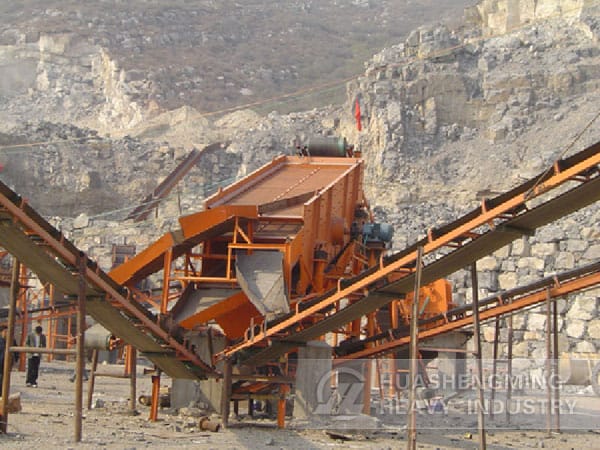

Applicable materials:Grading and screening materials in minerals, quarry, building material, transportation, energy sources, chemical industry, water conservancy and hydropower, smelting etc.
Application scope:Grading and screening materials in minerals, quarry, building material, transportation, energy sources, chemical industry, water conservancy and hydropower, smelting etc.
Customized Crushing Solution for Your Raw Materials

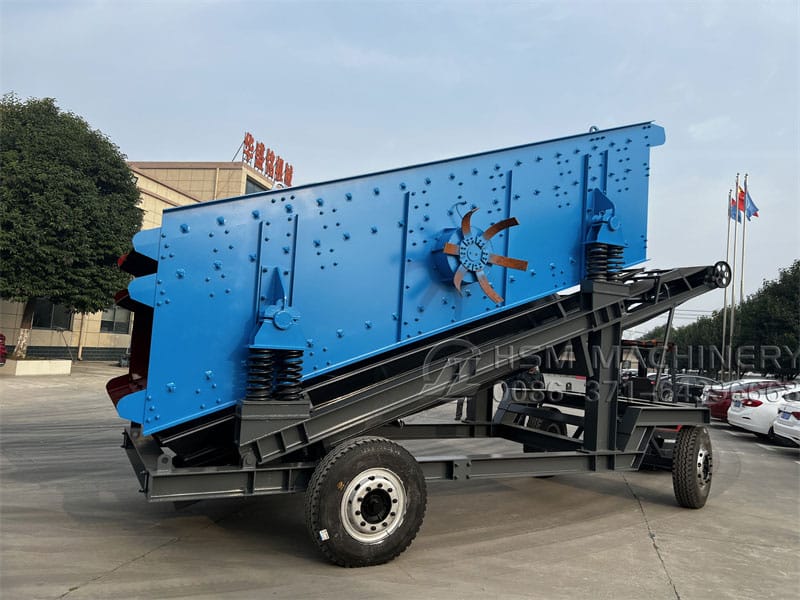

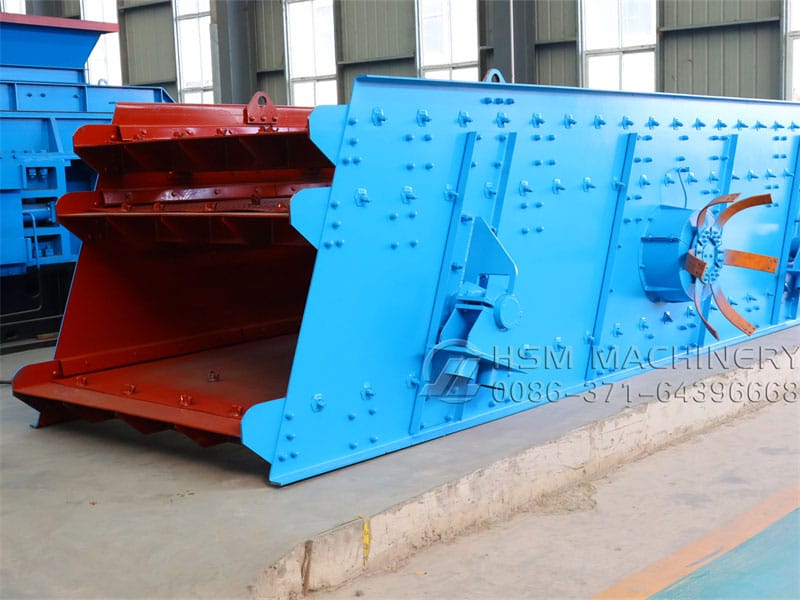

chat onlineBy the motor force and adjusting the amplitude of the eccentric shaft, vibrating screen moves quickly like a circle. Materials in the sieve case can be separated and screened from the sieve pore in this process.
| Model | Screen decks |
Screen area(m2) |
Screen?hole size(mm) |
Max.?feeding size(mm) |
Capacity (t/h) |
Power (KW) |
Screen?specification (mm) |
| YK1236 | 1 | 4.3 | 3-100 | 300 | 20-150 | 5.5 | 1180×3550 |
| 2YK1236 | 2 | 4.3 | 3-100 | 300 | 20-150 | 5.5 | 1180×3550 |
| 3YK1236 | 3 | 4.3 | 3-100 | 300 | 20-150 | 7.5 | 1180×3550 |
| 4YK1236 | 4 | 4.3 | 3-100 | 300 | 20-150 | 11 | 1180×3550 |
| YK1548 | 1 | 7.2 | 3-100 | 400 | 20-150 | 11 | 1480×4750 |
| 2YK1548 | 2 | 7.2 | 3-100 | 400 | 30-275 | 15 | 1480×4750 |
| 3YK1548 | 3 | 7.2 | 3-100 | 400 | 30-275 | 15 | 1480×4750 |
| 4YK1548 | 4 | 7.2 | 3-100 | 200 | 30-275 | 18.5 | 1480×4750 |
| YK1848 | 1 | 8.6 | 3-100 | 400 | 32-350 | 15 | 1780×5950 |
| 2YK1848 | 2 | 8.6 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 3YK1848 | 3 | 8.6 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 4YK1848 | 4 | 8.6 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| YK1860 | 1 | 10.8 | 3-100 | 400 | 32-350 | 15 | 1780×5950 |
| 2YK1860 | 2 | 10.8 | 3-100 | 400 | 32-350 | 18.5 | 1780×5950 |
| 3YK1860 | 3 | 10.8 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| 4YK1860 | 4 | 10.8 | 3-100 | 400 | 32-350 | 22 | 1780×5950 |
| YK2160 | 1 | 12.6 | 3-100 | 400 | 66-720 | 18.5 | 2080×5950 |
| 2YK2160 | 2 | 12.6 | 3-100 | 400 | 66-720 | 22 | 2080×5950 |
| 3YK2160 | 3 | 12.6 | 3-100 | 400 | 66-720 | 30 | 2080×5950 |
| 4YK2160 | 4 | 12.6 | 3-100 | 400 | 66-720 | 30 | 2080×5950 |
| YK2460 | 1 | 14.4 | 3-100 | 400 | 75-750 | 18.5 | 2080×5950 |
| 2YK2460 | 2 | 14.4 | 3-100 | 400 | 100-810 | 37 | 2380×5950 |
| 3YK2460 | 3 | 14.4 | 3-100 | 400 | 75-750 | 37 | 2380×5950 |
| 4YK2460 | 4 | 14.4 | 3-100 | 400 | 75-750 | 37 | 2380×5950 |
| YK3060 | 1 | 18 | 3-100 | 400 | 200-900 | 30 | 2980×5950 |
| 2YK3060 | 2 | 18 | 3-100 | 400 | 200-900 | 37 | 2980×5950 |
| 3YK3060 | 3 | 18 | 3-100 | 400 | 200-900 | 45 | 2980×5950 |
| 4YK3060 | 4 | 18 | 3-100 | 400 | 200-900 | 45 | 2980×5950 |
