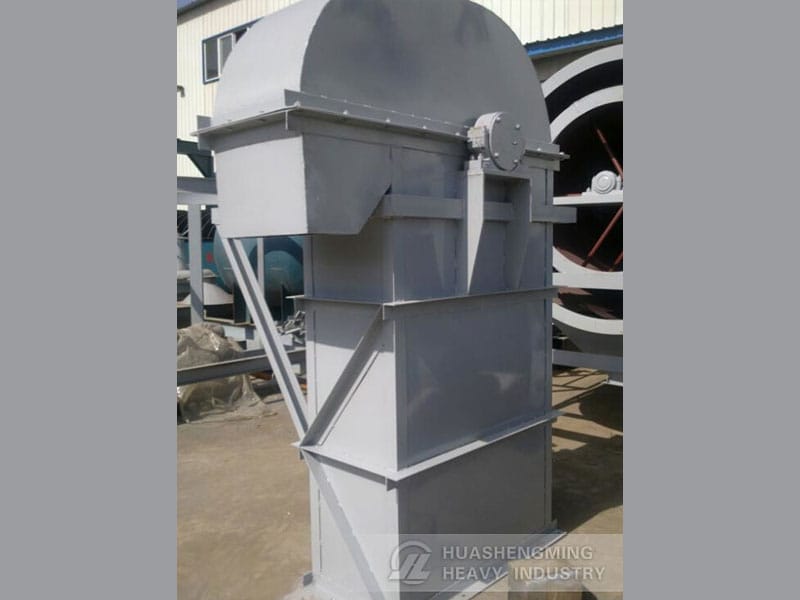

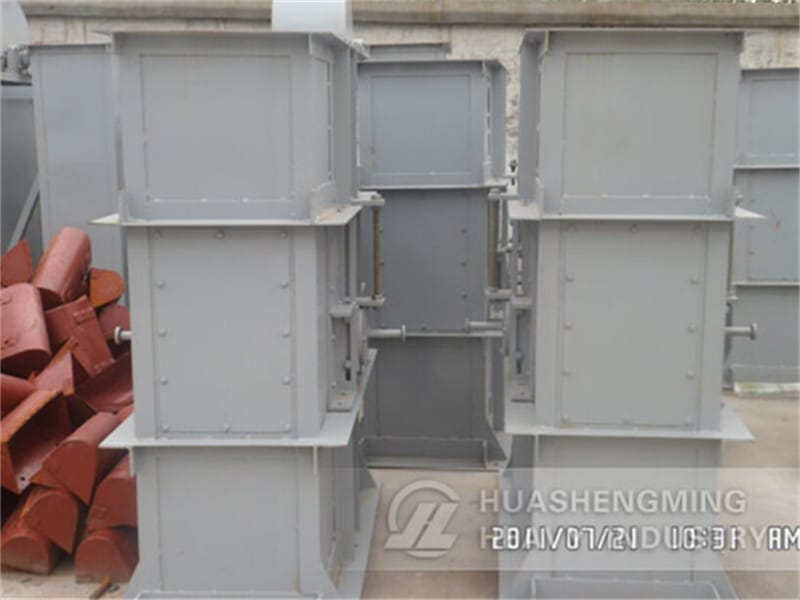

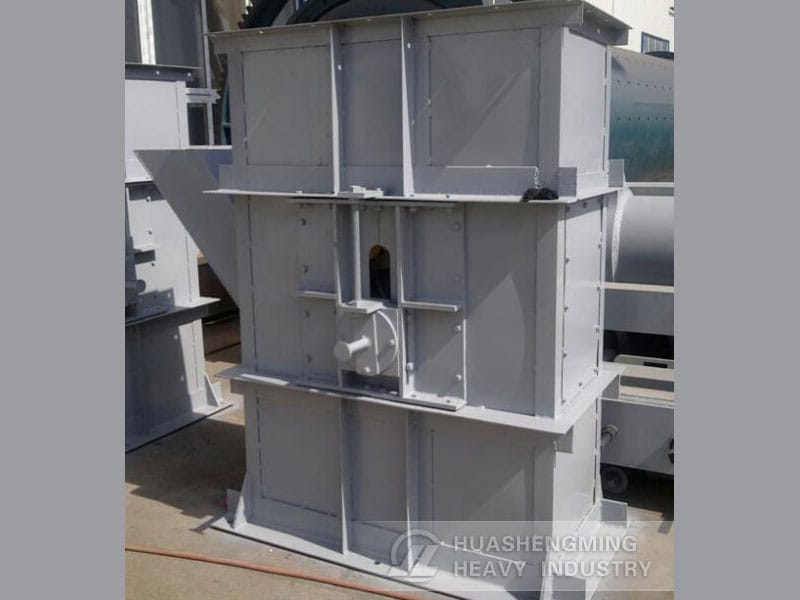

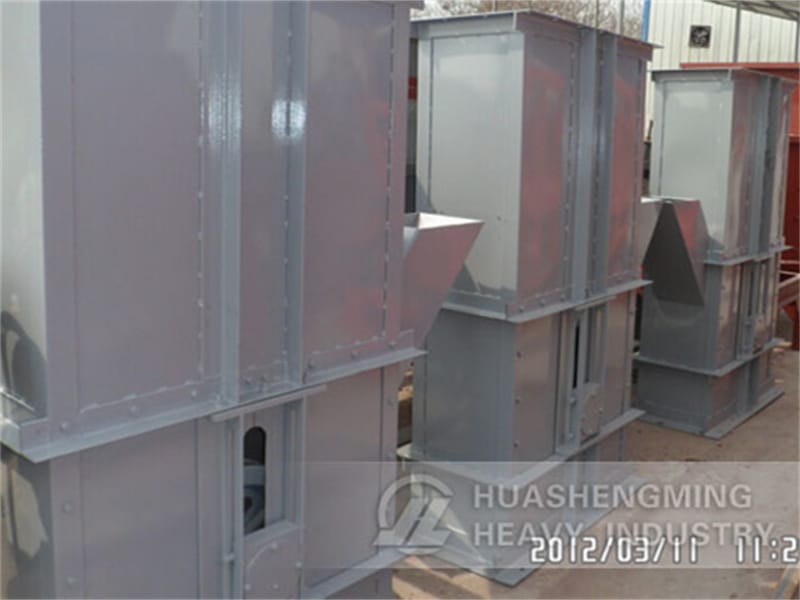

TD/TH Bucket Elevator apply to transporting materials vertically such as powder, pellet, particulate, even if with more surface friction, for example food, coal, cement, granular ore, etc. The lifting height is up to 60 meters. TD/TH Bucket Elevator is widely used in mining, cement,metallurgy, building materials, coal, hydropower and other departments.
Customized Crushing Solution for Your Raw Materials
chat online| Model | TD160 | TD250 | TD315 | TD400 | TD500 | TD630 | |||||||||||||||||
| Bucket?form | Q | H | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd | Q | H | Zd | Sd | H | Zd | Sd |
| Transfer?amount (m3/h) |
5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 | 38 | 70 | 58 | 92 | 85 | 89 | 142 |
| Bucket?width (mm) |
160 | 250 | 315 | 400 | 500 | 630 | |||||||||||||||||
| Bucket?volume (L) |
0.5 | 0.9 | 1.2 | 1.9 | 1.3 | 2.2 | 3 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 32.5 |
| Bucket?clearance (mm) |
280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | 500 | 625 | 710 | ||||||||||||
| Belt?width (mm) |
200 | 300 | 400 | 500 | 600 | 700 | |||||||||||||||||
| Bucket?speed (m/s) |
1.4 | 1.6 | 1.6 | 1.8 | 1.8 | 2 | |||||||||||||||||
| Max.block material (mm) |
25 | 35 | 45 | 55 | 60 | 70 | |||||||||||||||||
