Huashengming Has High-Quality, High-Yield Small Glass Crushers 。Huashengming Heavy Industry offers a range of small double-roll crushers designed for glass crushing, including double-roll sand-making machines and double-tooth roll crushers. These machines are characterised by high wear resistance, precise output control, and medium to high production capacity.

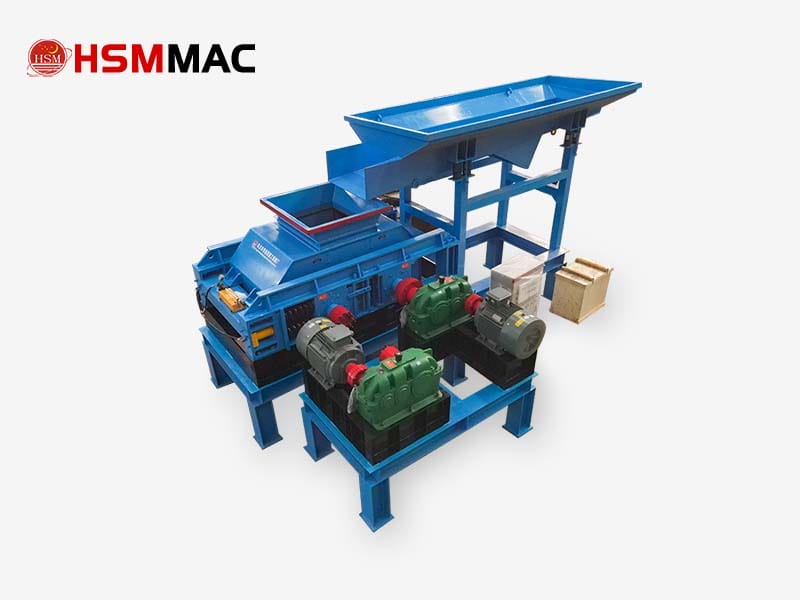

High-Yield Small Glass Crushers
1. Recommended models of small double-roll glass crushers
Below is a comparison of the main models and parameters of Huashengming's small double-roll crushers:
Model Production Capacity (t/h) Feed Size (mm) Discharge Size (mm) Application Scenarios
2PGT400×250 2-10 ≤25 1-10 Small-scale glass recycling plants, laboratory crushing
2PGT400×400 5-12 ≤25 1-10 Medium to small-scale production lines
2PGT610×400 5-20 ≤30 1-15 Medium-sized production lines
2PGC400×250 7-15 80-100 10-50 Medium-sized production lines
2PGC400×400 15-30 180-260 10-50 Small and medium-sized production lines
Note:
The PGT series are spring-type double-roll crushers, featuring a simple structure and low cost;
The PGC series are double-tooth roll crushers, with tooth designs optimised for crushing brittle materials like glass, resulting in lower over-crushing rates.
2. Quality advantages: Wear-resistant & durable & patented technology
Roll shell material: High-chromium manganese steel + rare metal wear-resistant alloy, high hardness, high-temperature resistant, average lifespan ≥2 years.
Precise particle size control: Hydraulic or spring system adjusts roll spacing (adjustable from 1-50mm), with output uniformity of ±1mm.
Dust-proof and noise-reducing design: Sealed structure reduces dust dispersion, with noise levels below industry standards.
3. Production Performance: High Efficiency & Energy Saving
Small-sized machine (e.g., 2PGT400×400): Hourly output of 5-12 tonnes, dual motor drive (single motor power 7.5-15 kW), energy consumption 45% lower than traditional hammer crushers.
Mid-sized upgraded model (e.g., 2PGY750×500): Hydraulic system supports an hourly output of 10–50 tonnes, suitable for scenarios requiring flexible production expansion.
High-Yield Small Glass Crushers
4. Applicability and technical features
Glass compatibility: Optimised for brittle materials such as glass and ceramics, the compression-type crushing reduces over-crushing, resulting in well-formed finished particles.
Multi-purpose: By changing the roller surface tooth profile, it can process river pebbles, limestone, etc., offering high investment cost-effectiveness.
Intelligent Protection: Hydraulic overload protection + automatic retreat system to prevent damage from hard objects getting stuck in the machine.
5. Purchase Recommendations
On-site Testing: Bring glass samples to the Gongyi factory for testing (diesel/electric motor models available upon request).
Configuration Options:
Economy Model: Spring-type double-roll crusher (2PGT series), suitable for users with limited budgets;
High-efficiency model: Hydraulic roller crusher (2PGY series) or double-tooth roller crusher (PGC series), with a 30% increase in production capacity.
We recommend prioritising the double-tooth roller crusher model (e.g., 2PGC400×400), which demonstrates exceptional particle control capability and durability in glass crushing.
For higher production capacity, you can upgrade the hydraulic system or choose a medium-sized configuration.
