How does a roll crusher work? A Technical Process Breakdown

admin — Mon, 22 Dec 2025 05:52:56 +0000

A roll crusher's operation involves precise mechanical interaction between two rotating cylinders. The process begins when feed material enters the crushing chamber and comes into contact with the rotating rolls. Through a combination of compression, shear, and impact forces, materials are reduced to the desired size.

Detailed Working Process:

Feed Intake

- Material enters through the top hopper

Initial Engagement

?- Rolls grip material through surface friction

Compression Phase

?- Material is compressed between rotating surfaces

Size Reduction

?- Fracturing occurs along natural material weaknesses

Product Discharge

?- Sized material exits through adjustable gap

Roller Crusher

This controlled compression process produces uniform, cubical particles with minimal fines generation - perfect for various industrial applications.

Need precise size reduction solutions??Consult with our engineers at Huashengming for customized roll crusher configurations.

The Best Crusher for Quality Recycled Concrete: The Roller Crusher Advantage

admin — Sun, 21 Dec 2025 08:39:54 +0000

For projects demanding high-quality recycled concrete aggregates with minimal environmental impact, the?Roller Crusher?is the optimal selection. Its closed-chamber, low-speed compression crushing generates significantly less noise and airborne dust than high-impact methods, supporting compliance with strict worksite environmental and community standards.

Roller Crusher

More importantly, the quality of the crushed material is superior. The roller crusher excels at producing clean, well-shaped aggregate by effectively separating the hardened cement paste from the natural aggregate.

This results in a stronger, more durable recycled product suitable for high-value applications like road base or drainage layers.

By choosing a roller crusher, you invest in a process that prioritizes both the quality of the end product and the sustainability of the operation.

Produce premium recycled concrete responsibly.?Partner with Huashengming, a leading manufacturer from China’s industrial hub, to implement a clean, efficient?Roller Crusher?system in your recycling flow.

Roller Crusher vs Jaw Crusher: Key Differences You Need to Know

admin — Fri, 19 Dec 2025 06:47:20 +0000

In mining, construction and aggregate processing, roller crushers and jaw crushers are widely used but often confusing for selection. This article simplifies their key differences to help you decide.

hydralic roller crusher

Jaw Crusher

1. Working Principle: Extrusion vs Compression-Shear

Their core difference lies in working principles, which determine crushing effects and material applicability.

Roller Crusher: Relies on relative rotation of parallel rollers to squeeze and grind materials. The process is gentle with little over-crushing.

Jaw Crusher: Uses compression-shear principle. A movable jaw (driven by an eccentric shaft) moves reciprocally against a fixed jaw to crush materials. It has strong crushing force and high ratio.

2. Structural Design: Compact vs Robust

Structural features affect installation, transportation and maintenance.

Roller Crusher: Compact and simple structure, small in size and light in weight, easy to install. Roller surfaces are vulnerable and need regular replacement.

Jaw Crusher: Robust and complex structure, large and heavy, requiring solid foundation for installation. Jaw plates are main vulnerable parts, easy to replace.

3. Applicable Materials: Medium-Soft vs Hard

Crushing force and working mode determine material applicability.

Roller Crusher: Suitable for medium-soft materials (coal, limestone, etc., compressive strength <150MPa). Not for hard/abrasive materials (causes rapid roller wear).

Jaw Crusher: Ideal for primary crushing of hard materials (granite, basalt, etc., compressive strength up to 320MPa). Handles large raw materials well.

4. Product Characteristics: Uniform Particle Size vs Coarse Crushing

Product particle size, shape and uniformity differ significantly.

Roller Crusher: Products have uniform particle size and good shape. Granularity is adjustable via roller gap, suitable for sand making.

Jaw Crusher: Products are coarse and less uniform, often needing secondary crushing. Irregular shape with more needle-like particles, used for primary crushing.

5. Production Capacity and Energy Consumption

Capacity and energy consumption are key economic indicators.

Roller Crusher: Small capacity (1-1000t/h), low energy consumption, suitable for small-medium production lines.

Jaw Crusher: Large capacity (1-10000t/h), high energy consumption, suitable for large-scale production lines.

6. Application Scenarios: Secondary Crushing vs Primary Crushing

Application scenarios are clearly divided based on above differences.

Roller Crusher: Used for secondary/fine crushing (coal-fired power plants, cement plants, sand making, small mines).

Jaw Crusher: Widely used for primary crushing (large mines, highway/railway construction, concrete plants, metallurgy).

Summary: How to Choose?

In short, choose based on project needs:

Choose jaw crusher for hard materials, large raw materials or large-capacity primary crushing;

Choose roller crusher for medium-soft materials, uniform product size or small-capacity secondary/fine crushing.

Also consider equipment cost, maintenance cost and site conditions in practice.

The Key Advantages of Roller Crushers in Lithium Ore Processing

admin — Thu, 18 Dec 2025 07:33:30 +0000

Choosing the right crushing equipment is critical for profitable lithium extraction. For the secondary or tertiary crushing of lithium ores, the Huashengming Roller Crusher?stands out due to its precision, efficiency, and gentle processing action.

roller crusher

Its core benefit lies in delivering?controlled size reduction?that directly addresses the challenges of brittle, crystalline lithium minerals.

The crusher excels by producing a narrowly sized, cubic product with a significantly lower percentage of problematic fine particles. This is achieved through its adjustable roll gap, which allows operators to dial in the exact product specification needed.

By minimizing fines, it not only improves the efficiency of downstream processes but also reduces reagent consumption in beneficiation and lowers overall energy use. Its robust, low-wear design ensures reliable operation with less maintenance, making it a cost-effective and reliable?lithium ore crusher?solution for continuous mining operations.

Discover a more efficient path to lithium concentration. Inquire about our Roller Crusher specifications today.

Jaw Crusher: The Core Equipment for Granite Crushing

admin — Wed, 17 Dec 2025 07:01:47 +0000

As a high-hardness, wear-resistant material widely used in construction and decoration, raw granite blocks require crushing equipment for processing. Among various options, the jaw crusher is favored as the primary crushing equipment for granite due to its stable performance, strong capacity and wide adaptability.

How Does a Jaw Crusher Work for Granite?

The jaw crusher adopts an extrusion crushing mechanism, consisting of fixed and movable jaw plates, and an eccentric shaft. Driven by the motor, the eccentric shaft makes the movable jaw plate swing reciprocally: when approaching the fixed one, it crushes granite blocks; when moving away, the crushed particles fall from the discharge port, realizing continuous crushing.

Why Is Jaw Crusher the First Choice for Granite Crushing?

With a Mohs hardness of 6-7, granite demands wear-resistant and high-capacity crushing equipment. The jaw crusher becomes the top choice for its unique advantages:

Strong Capacity & High Efficiency: Equipped with a deep crushing cavity and large feed port, it handles large granite blocks (max feed size up to several meters) and achieves an hourly output of hundreds to thousands of tons, suitable for both small and large-scale projects.

Excellent Wear Resistance: Its core wearing parts (jaw plates) are made of high-manganese or alloy steel. With a reasonable lubrication system, it has a long service life even when crushing high-hardness granite.

Wide Adaptability: It can crush granite, basalt and other high-hardness materials. As primary crushing equipment, it can combine with cone crushers to form a complete production line for different particle size requirements.

Easy Maintenance: With a simple structure and few wearing parts, it allows quick replacement of components. Ordinary workers can master its operation after simple training.

Practical Application Scenarios of Jaw Crusher in Granite Processing

The jaw crusher plays an irreplaceable role in granite processing, with typical application scenarios:

Quarry Primary Crushing: It crushes 1-3m raw granite blocks into 50-200mm medium particles, providing qualified materials for subsequent processing.

Construction Aggregate Production: Its crushed granite can be processed into aggregates for highways, railways and high-rise buildings, ensuring project quality with uniform particle size and high compressive strength.

Stone Processing: It crushes large blocks into small pieces for cutting and polishing, which are then made into decorative stones like floor tiles and countertops.

Key Tips for Choosing a Jaw Crusher for Granite Crushing

Key factors to consider when selecting a jaw crusher for granite crushing:

Feed & Discharge Requirements: Clarify the max raw block size and required discharge particle size to select the right model.

Production Capacity: Choose the model based on hourly/daily output needs, noting that capacity is affected by granite hardness and humidity.

Quality & After-Sales: Select regular manufacturers with reliable quality and perfect after-sales services (installation, maintenance training, wearing parts supply).

In summary, the jaw crusher is a classic and efficient granite crushing equipment. With the growth of construction and mining industries, it will be further optimized to support the industry. For questions about selection, use or maintenance, welcome to leave comments for quick replies.

Impact vs Cone Crusher: The Optimal Choice for Construction Waste Sand Making

admin — Wed, 17 Dec 2025 06:36:11 +0000

When processing low-hardness, brittle construction waste into recycled sand, selecting the right crushing equipment is critical. For feeding a?construction waste sand making machine, Impact Crushers offer distinct advantages over Cone Crushers.

cone crusher

Impact Crusher

Key Advantages of Impact Crushers:

1.Suitable Crushing Principle:

Utilizes impact and rebound crushing, efficiently processing brittle materials like concrete and bricks while stripping surface mortar to improve sand purity. Cone crushers, designed for hard rock, are prone to clogging with these materials.

2.Ideal Product Shape:

?Produces cubical particles with low flakiness, providing optimal direct feed for?construction waste sand making machines?and enhancing final sand gradation.

3.Cost-Effective Operation:

Features a simpler structure for easier, lower-cost maintenance compared to the complex hydraulic systems of cone crushers.

4.High Impurity Tolerance:

Can handle occasional metal or plastic contaminants without major shutdowns, ensuring better production line uptime.

Ready to optimize your construction waste recycling line??Contact us to discuss how our Impact Crushers can enhance the efficiency of your?construction waste sand making machine?operation.

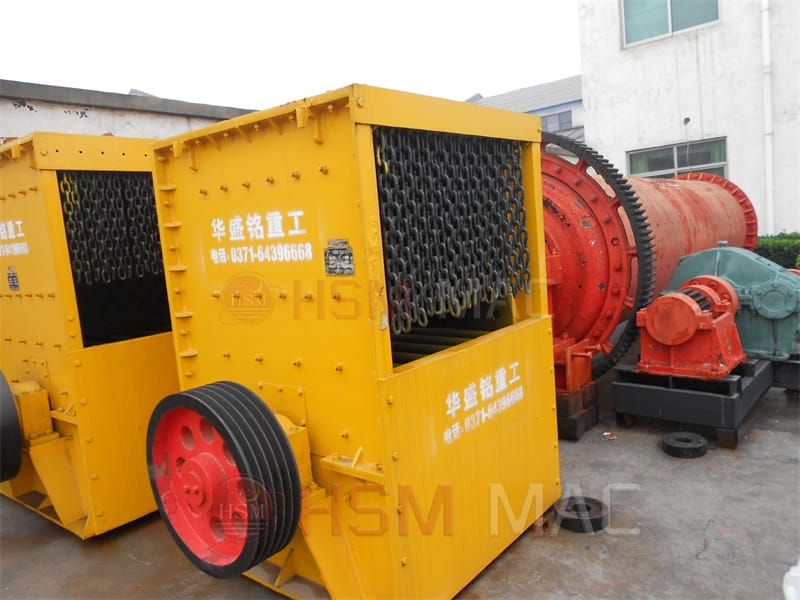

Box Hammer Crushers: The Reliable Workhorse for Primary Crushing

admin — Tue, 16 Dec 2025 06:31:33 +0000

Choosing the right primary crusher is key to operational efficiency. The box hammer crusher stands out for its simplicity, high crushing ratio, and material adaptability. Below is a breakdown of its working principle, key benefits, applications, and selection tips to guide your project decisions.

box hammer crusher

What Exactly Is a Box Hammer Crusher?

A specialized primary crusher, it features a compact box-shaped design integrating feeding, crushing, and screening. Unlike jaw/gyratory crushers (relying on compression), it uses high-speed impact: rotating rotor hammers smash materials, which then bounce to impact plates for secondary crushing, and are screened by a built-in sieve. This all-in-one design eliminates extra equipment, saving space and simplifying processes.

Core Advantages of Box Hammer Crushers

Widely favored in the industry, it boasts these key advantages for primary crushing:

1. High Crushing Ratio & Uniform Product Size

With a high crushing ratio (10-25), it can crush large raw materials (max feed 1200mm) into 0-40mm finished products in one pass. Impact and rebound crushing ensure uniform, cubical particles—ideal for construction aggregates. It streamlines processes (no multi-stage crushing), reducing equipment/energy use and improving quality.

2. Compact Structure & Easy Installation

Its integrated design saves site space and simplifies installation/transportation. It can be quickly installed on concrete foundations or mobile chassis, cutting commissioning time/costs—perfect for small-to-medium quarries or recycling sites with limited space.

3. Low Operation & Maintenance Costs

With a simple structure and few wearing parts (hammers, impact plates made of wear-resistant materials), it has a long service life and easy part replacement. Automatic controls reduce manual work, and maintenance (wear checks, lubrication, sieve cleaning) is simple—no professional team needed, lowering long-term costs.

4. Strong Adaptability to Raw Materials

It handles soft-to-medium-hard materials (limestone, coal, shale) and moderately abrasive ones (construction waste, cobblestones). It works well with wet materials (up to 15% moisture) without clogging, suiting mining, quarrying, waste recycling, and road construction.

Typical Applications of Box Hammer Crushers

Its versatility makes it widely used across industries:

Quarry Aggregate Production: Used in limestone/dolomite/gypsum quarries to produce aggregates for concrete, mortar, and road bases, meeting quality standards.

Construction Waste Recycling: Crushes concrete blocks/bricks into reusable aggregates, promoting waste reuse and reducing pollution.

Mining Industry: Primary crushing of ROM materials (coal, iron ore) with adaptability to varying ore hardness.

Road & Bridge Construction: Provides efficient aggregate crushing, usable on mobile stations for on-site flexibility.

Key Tips for Selecting a Box Hammer Crusher

Consider these factors when choosing a model:

Material Characteristics: Clarify type, max feed size, and moisture. Choose thicker wear-resistant parts for abrasive materials.

Production Requirements: Determine hourly output (50-500 TPH) and desired product size.

Site Conditions: Opt for compact models (limited space) or mobile ones (multi-site use).

Quality & After-Sales: Choose reputable manufacturers; prioritize after-sales support (wear parts, maintenance, training).

Energy Efficiency: Select energy-saving models with optimized rotors.

Consult professional suppliers for on-site surveys and customized advice on selection, installation, and maintenance.

Final Thoughts

Indispensable in mining, construction, and environmental protection, the box hammer crusher boosts efficiency and cuts costs with its compact design, low maintenance, and strong adaptability—ideal for small quarries, recycling plants, and mining projects.

Used a box hammer crusher? Share your experiences or questions in the comments! Follow us for more insights on crushing equipment, industry trends, and project optimization.

Is Crushed Stone Processing Still Profitable in 2025? Insights for Investors and Entrepreneurs

admin — Mon, 15 Dec 2025 08:25:47 +0000

As a core construction material, crushed stone is widely used in roads, buildings and pipelines. Amid industry consolidation and price swings, many investors wonder: Is crushed stone processing profitable in 2025? Let’s analyze the key market dynamics and profit drivers.

The Current State of the Crushed Stone Market: Challenges Loom Large

The industry faces significant headwinds. Since 2021, output and prices have declined steadily: 2024 sand and gravel consumption dropped 10.96% year-on-year, and by Q3 2025, the national average crushed stone price fell to ~72.3 yuan/ton, nearly 30% below its peak.

Overcapacity is the root cause. Newly approved capacity in five years reached 8.663 billion tons (5.663 billion tons unused), triggering price wars. In Henan and Zhejiang, some mines barely break even or suffer heavy losses. Even leaders feel the pinch—China Resources Building Materials Technology’s aggregate gross profit margin fell from 38.6% (Q1-Q3 2024) to 25.4% (same period 2025) due to fierce competition.

Bright Spots Amid the Gloom: Who Is Still Making Money?

Yet some players still profit, proving that strategic positioning matters more than market cycles.

Cement manufacturers with integrated aggregate businesses lead the way. Even as the cement industry lost money in H1 2024, their aggregate segments maintained high gross profit margins (Shangfeng: 63.62%, Jidong: 50.67%, etc.). They cut costs by using cement production waste rock and leverage existing sales networks.

Policy-driven demand is another boon. The 15th Five-Year Plan’s 5-trillion-yuan underground pipeline project will boost high-quality crushed stone demand. Enterprises offering customized products for such niche markets stand to gain.

Key Factors Determining Profitability: Beyond Market Trends

For those entering or expanding in the sector, three key factors determine profitability:

1. Cost Control: The Lifeline of Profitability

Costs include raw materials, equipment, energy, labor and environmental protection. High-cost mines are being eliminated. Successful firms use energy-saving tech and smart management to cut energy (15-20%) and labor (25-30%) costs.

2. Product Differentiation: Escaping Price Wars

Over 95% of enterprises produce homogeneous products, fueling price wars. Profitable ones focus on high-value-added products (e.g., prefabricated building aggregates). Huaxin Cement, for example, expanded to special mortars, boosting aggregate revenue by 36.96% in 2024.

3. Policy Compliance: Avoiding Operational Risks

Strict environmental regulations raise entry barriers (10-15% of costs go to pollution control). But compliance creates a moat—small substandard mines are phased out, leaving market share for large eco-friendly firms.

Conclusion: Profitability Is Possible for the Prepared

The industry is shifting from scale expansion to value creation. Reckless mining’s easy profits are gone, but firms with cost advantages, differentiated products and policy-demand access can thrive.

For investors: Avoid overcapacity regions; prioritize cement-integrated projects or infrastructure-proximal sites. For existing firms: Upgrade tech, target niches and use recycled aggregates to cut costs.

In short, crushed stone processing remains profitable in 2025—for those who adapt to new market rules. What’s your view? Share in the comments!

5 Key Advantages of Using a Roller Crusher for Brick Processing

admin — Mon, 15 Dec 2025 08:21:56 +0000

In brick recycling for sand production, the Roller Crusher, used as secondary crushing equipment in conjunction with a?Bricks Sand Making Machine, demonstrates unique technical advantages:

hydralic roller crusher

Advantage 1: Precise Size Control

Adjustable roll gap (1-30mm) for precise calibration.
Produces uniform output with an ultra-fines generation rate below 8%.
Creates ideal feed material for the?Bricks Sand Making Machine.

Advantage 2: Significant Energy Efficiency

Roller Crusher

Reduces specific energy consumption by 30-40% compared to impact crushing.
Low-speed, high-torque design is well-suited for brick crushing characteristics.
Lowers overall system energy consumption, improving economic returns.

Advantage 3: Broad Material Adaptability

Capable of processing brick material with clay content up to 15%.
Tolerates construction waste with small amounts of wood or plastic.
Easy maintenance leads to low operating costs.

Advantage 4: Superior Environmental Performance

Enclosed design reduces dust emissions by over 60%.
Noise levels controlled below 85dB.
Complies with international environmental standards.

Advantage 5: High Return on Investment (ROI)

Typical equipment payback period of 8-14 months.
Paired with a?Bricks Sand Making Machine, significantly enhances overall system profitability.
Durable construction ensures low maintenance costs.

5 Key Advantages of Using a Roller Crusher in Soil Sand Making

admin — Sat, 13 Dec 2025 07:50:03 +0000

Roller Crusher

1. Gentle Yet Effective Processing

Our Roller Crusher provides the optimal balance between crushing efficiency and material preservation when processing soil. Unlike high-impact crushers that can pulverize clay particles, the controlled compression method maintains soil structure while achieving the necessary size reduction for your?soil sand making machine.

2. Superior Moisture Management

Designed specifically for soil applications, our Roller Crusher handles materials with 15-30% moisture content without clogging. The counter-rotating rolls create a self-cleaning action that prevents material buildup, ensuring continuous operation in your?soil sand making machine?production line.

3. Energy-Efficient Operation

Compared to impact crushers, our Roller Crusher operates at 35% lower power consumption when processing soil materials. The efficient compression technology reduces energy costs while maintaining high throughput for your complete?soil sand making machine?system.

4. Consistent Particle Size Control

The adjustable roll gap allows precise control over final product specifications. This ensures uniform feed for your downstream?soil sand making machine, optimizing its performance and producing consistently graded manufactured sand that meets construction standards.

5. Low Maintenance & High Durability

With fewer moving parts and specially coated rollers resistant to soil abrasion, our Roller Crusher requires minimal maintenance. The robust design withstands the variable characteristics of different soil types, providing reliable operation in your?soil sand making machine?processing plant.
